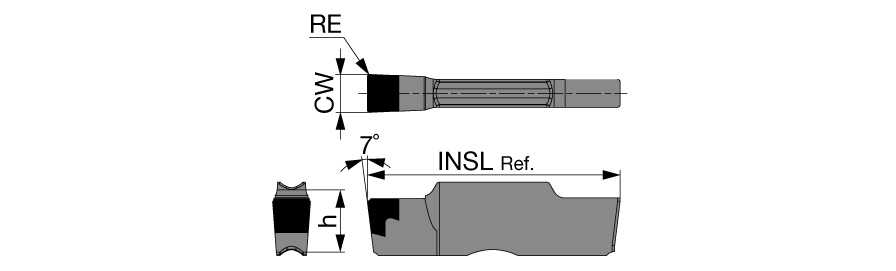

| Cutting Width (CW) | 3 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | DX160 | Tool Type | Groove Turn Ultra hard Inserts |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
Product Features
| Family Description | Single-ended PCD insert with 3D chipbreaker for groovingker and groove-turning of non-ferrous metal parts | FamilyName | STXR/L |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Inserts
FamilyName
STXR/L
BrandName
Tungaloy
