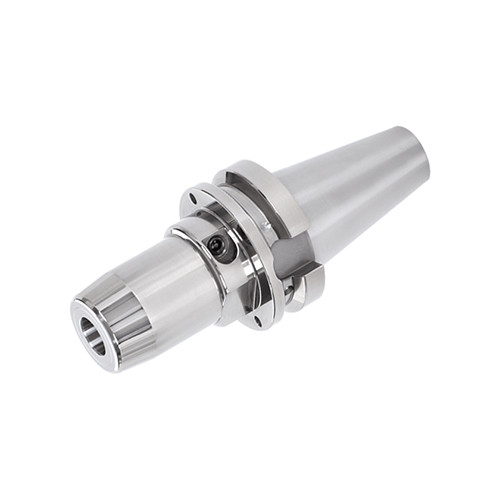

BT40HYDRO10X90T

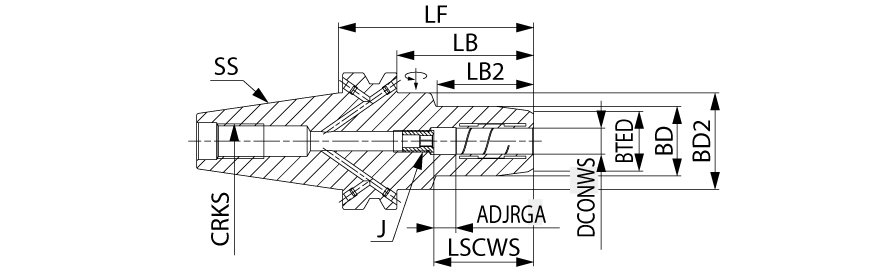

| Body Length (LB) | 63 mm | Shank Size (SS) | 40 |
| Body Length_2 (LB_2) | 44.5 mm | Application | | Tapered shape interface | |
| Thread Designation Inside (THID) | M8x1 | Tool Type | BT |
| Body Diameter (BD) | 30 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 44.5 mm | Body Taper End Diameter (BTED) | 26 |
| Overall Length (OAL) | 90 mm | Body Material | Steel |
| Clamping Length Workpiece Side (LSCWS) | 41 mm | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | BT MAS-403 ADB Integrated Holder High Precision Hydraulic Chuck | FamilyName | BT-HYDRO-T |
| Remarks | Wrench is not included. Please order separately. Tool shank tolerance: h6 Balanced to G2.5, max n: 25,000 min 1 | BrandName | Tungaloy |
| COO | GERMANY |
Shipping Info
Weight per item
0.0000
Name
Hydraulic Holders
FamilyName
BT-HYDRO-T
BrandName
Tungaloy
