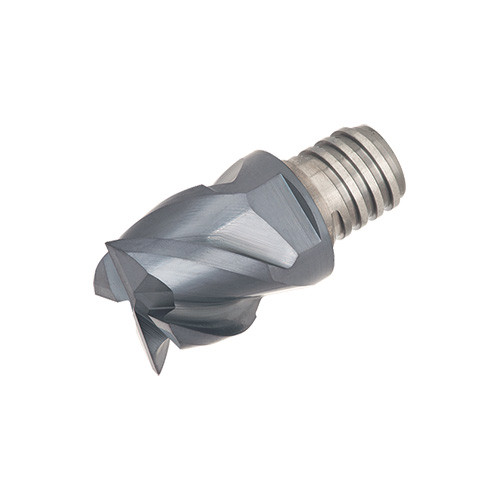

VED100L07.0R05-04S06 AH715
Square, 4 flutes, roughing - finishing, general
| Application | | Shoulder Milling | | Grade | AH715 |
| Cutting Diameter (DC) | 10 mm | Coating | TiAlSiCrN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 0.5 mm | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Cutting Diameter Maximum (DCX) | 10 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 7 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Functional Length (LF) | 13 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Unit | M |
Product Features
| Family Description | Square, 4 flutes, roughing - finishing, general | FamilyName | VED/VEE-04 |

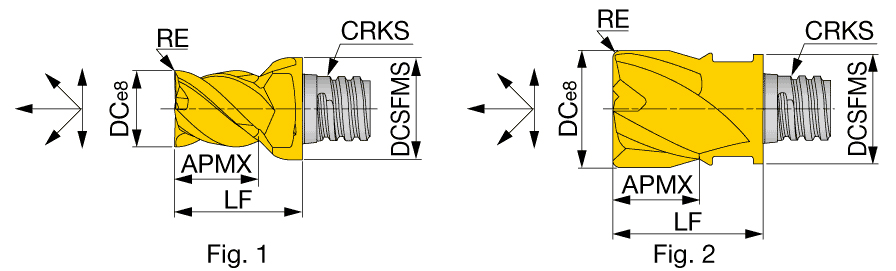

| Remarks | Fig. 1: Avoid interference with workpiece when using this cutting head. The shank diameter is larger than the cutter diameter when assembled. Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Solid End Mill Heads
FamilyName
VED/VEE-04
BrandName
Tungaloy
