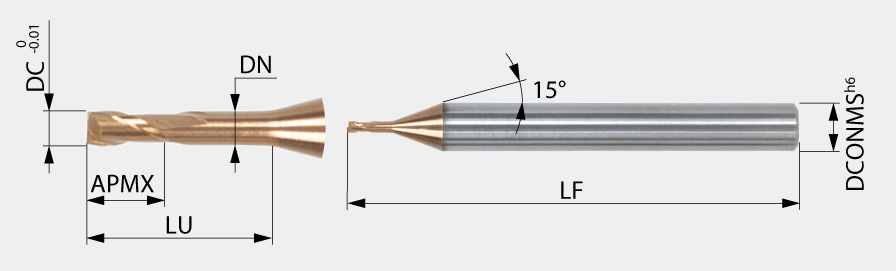

| Cutting Diameter (DC) | 0.4 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Grade | AH3005 |
| Depth of Cut Maximum (APMX) | 0.6 mm | Neck Diameter (DN) | 0.37 mm |
| Overall Length (OAL) | 45 mm | Head Length (LH) | 2 mm |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Unit | M |
Product Features
| Family Description | 2 flute endmill,30 deg helix angle,Long neck type,for hardened steel | FamilyName | TEC-A2H |
| COO | SOUTH KOREA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
TEC-A2H
BrandName
Tungaloy
