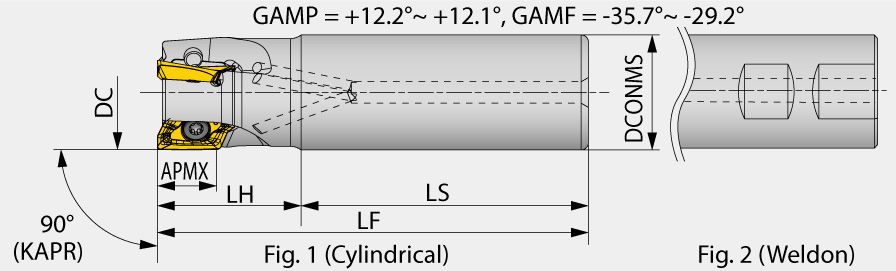

| Cutting Diameter (DC/DCX) | 30 mm | Master Insert Identification (MIID) | AVMT180708PDER-MM |
| Cutting Diameter (DC) | 30 mm | Head Length (LH) | 40 mm |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 120 mm |
| Depth of Cut Maximum (APMX) | 16.5 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 30 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Unit | M |
Product Features

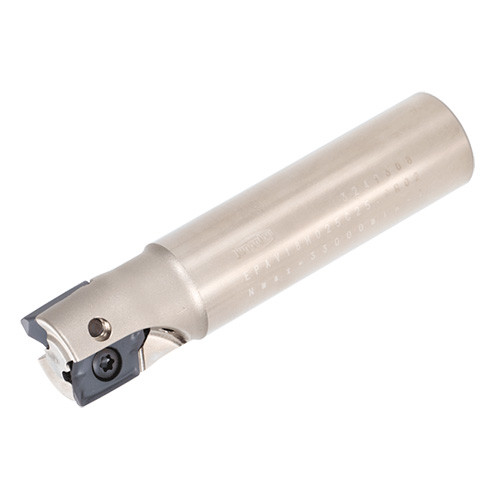

| Family Description | Square shoulder endmill, shank type, with screw clamp system | FamilyName | EPAV18 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EPAV18
BrandName
Tungaloy
