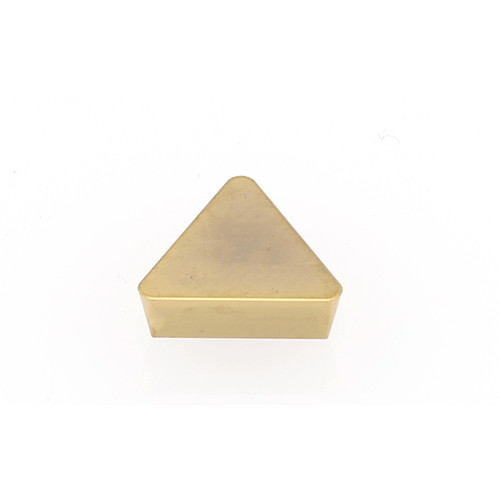

TPGN110304T01020 HW2
| Applicable Material | | Cast Iron | | Cutting Edge Material | Ceramic |
| Application | | Inserts for turning & grooving | | Grade | HW2 |

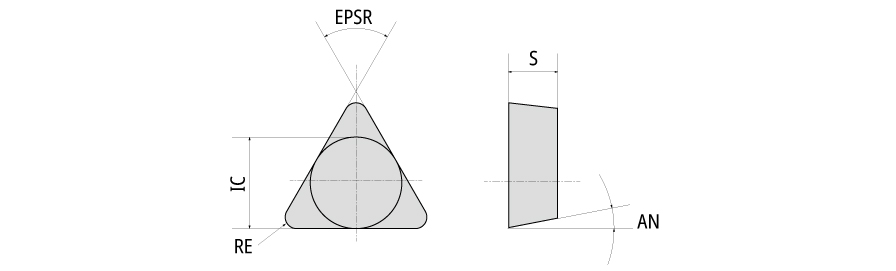

| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 60 Degrees | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | TPGN type insert |
Shipping Info
Weight per item
0.0005
Name
Turning Indexable Inserts
FamilyName
TPGN type insert
BrandName
NTK Cutting Tools
