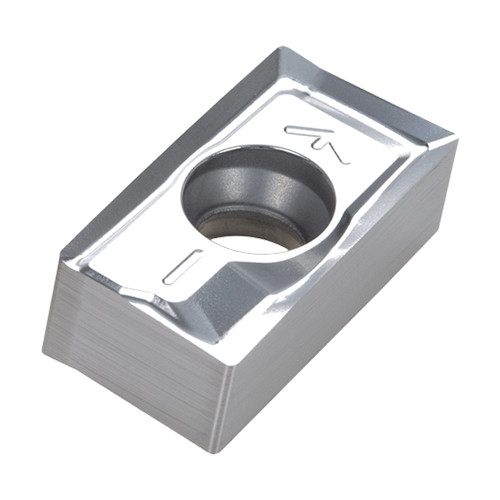

LXGU060202PFR-AM KS05F
Double-sided insert with four total cutting edges and AM chipbreaker for non-ferrous metal machining
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | KS05F |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

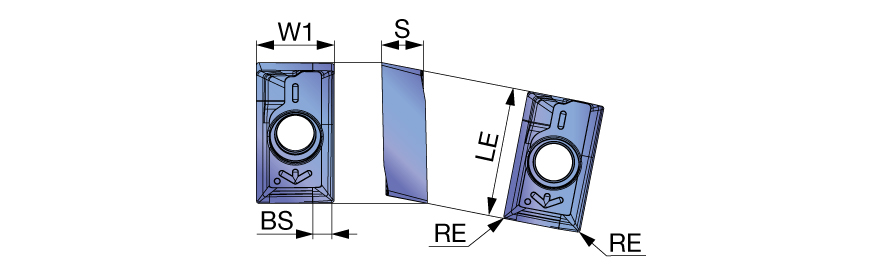

| Corner Radius (RE) | 0.2 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 5 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 3.9 mm | Cutting Edge Effective Length (LE) | 6 mm |
| Insert Thickness (S) | 2.3 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.8 mm | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | Double-sided insert with four total cutting edges and AM chipbreaker for non-ferrous metal machining | FamilyName | LXGU-AM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
LXGU-AM
BrandName
Tungaloy
