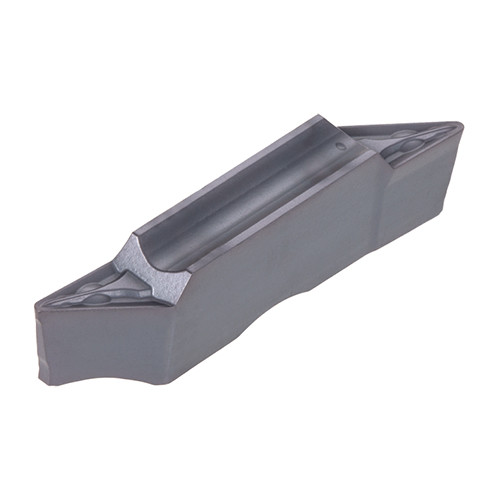

DTV2-020-35L-PS AH7025
Double-ended insert for profiling, with 35 deg nose angle.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Left Hand |
| Application | | Inserts | | Chip Breaker Type | DTV-PS |
| Corner Radius (RE) | 0.2 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | AH7025 |
Product Features
| Family Description | Double-ended insert for profiling, with 35 deg nose angle. | FamilyName | DTV |
| Remarks | Recommended toolholder: CAEFR/L or CTEFR/L Note: For toolholders other than the above, the insert support may require modification to avoid tool collision. For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
DTV
BrandName
Tungaloy
