TCS27-200-15L AH7025
Precision grooving and parting off inserts with 4 cutting edges (With hand). General purpose type.

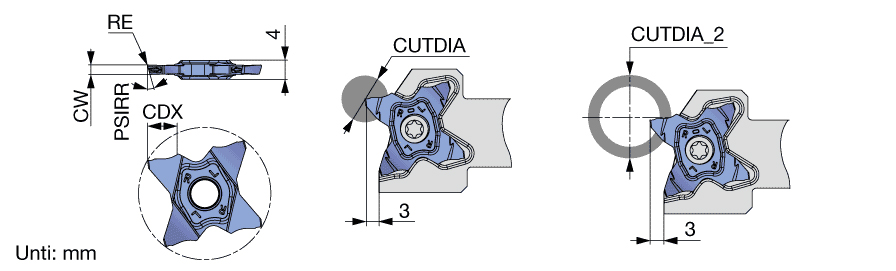

| Cutting Width (CW) | 2 mm | Cutting Edge Angle Major Left Hand (PSIRL) | 15 Degrees |
| Corner Radius (RE) | 0.1 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 12.8 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH7025 | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | Precision grooving and parting off inserts with 4 cutting edges (With hand). General purpose type. | FamilyName | TCS27-R/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Inserts
FamilyName
TCS27-R/L
BrandName
Tungaloy
