EPXV16U1.00W1.00R02L
Square shoulder endmill for high-speed aluminum machining

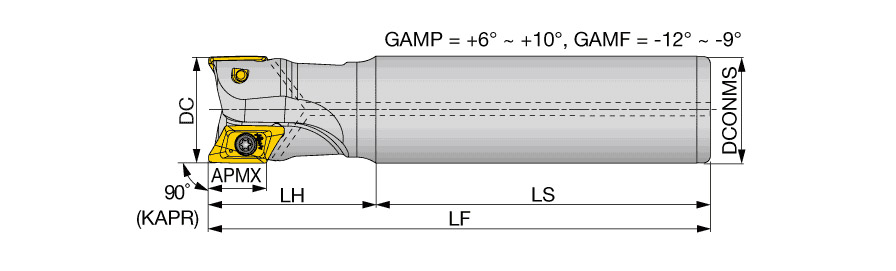

| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 7″ |
| Cutting Diameter (DC) | 1″ | Tool Type | 90 Indexable for Aluminum |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.63″ | Measurement Type | Inch |
| Overall Length (OAL) | 7″ | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
| Master Insert Identification (MIID) | XVCT160508PEFR-AM | Unit | I |
| Head Length (LH) | 3″ |
Product Features
| Family Description | Square shoulder endmill for high-speed aluminum machining | FamilyName | EPXV16 |
| Remarks | XVCT AM inserts can be used with a TPXV/EPXV cutter. DO NOT use XVCT AJ inserts with a TPXV/EPXV cutter. This may cause tool and machine damage. | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.0000
Name
Indexable End Mills
FamilyName
EPXV16
BrandName
Tungaloy
