| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 1 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 8.3 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCD | Chip Breaker Type | BR-DIA |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | DX160 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.3 mm | Cutting Edge Effective Length (LE) | 2.1 mm |
| Tool Type | Turn Ultra hard Inserts | Unit | M |
Product Features

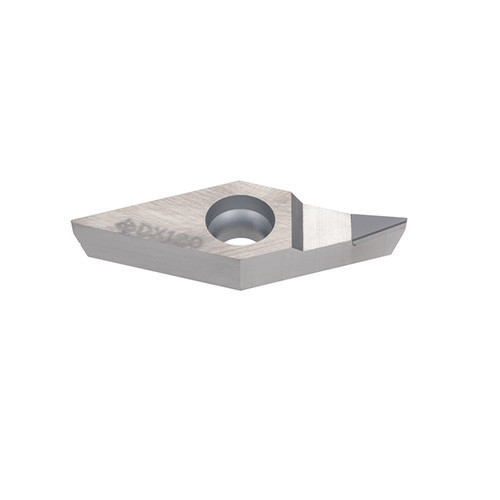

| Family Description | Positive 7 deg relief angle, M class, 35 deg rhombic PCD insert | FamilyName | VCMT-DIA |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
VCMT-DIA
BrandName
Tungaloy
