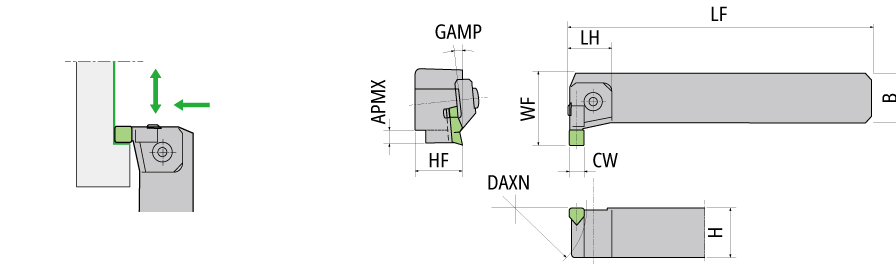

| Cutting Depth Maximum (CDX) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 20 mm | Application | | For Grooving insert | |
| Shank Width (B) | 20 mm | Axial Groove Outside Diameter Minimum (DAXN) | 38 mm |
| Functional Width (WF) | 33 mm | Body Material | Steel |
| Functional Length (LF) | 125 mm | Measurement Type | Metric |
| Head Length (LH) | 23.5 mm | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |

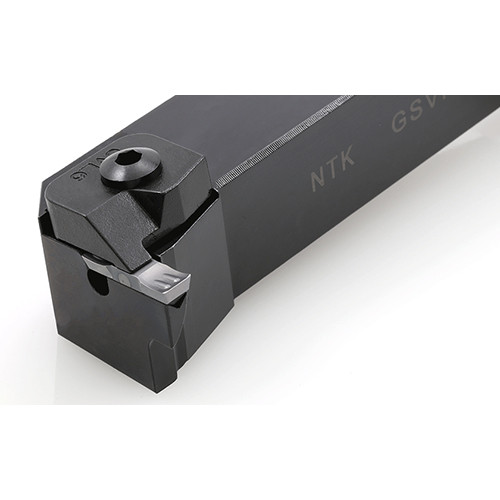

| FamilyName | GSV FACE GROOVING L-STYLE TOOLHOLDER |
Shipping Info
Weight per item
0.3925
Name
Groove/Turn Indexable Holders
FamilyName
GSV FACE GROOVING L-STYLE TOOLHOLDER
BrandName
NTK Cutting Tools
