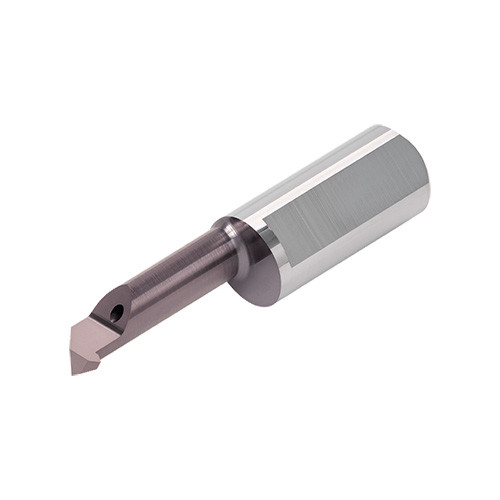

JBIR07140075-D050 SH725
Solid boring bars for threading, Metric thread
| Thread Pitch (TP) | 0.75 mm | Measurement Type | Metric |
| Overhang Minimum (OHN) | 0.4 mm | Overall Length (OAL) | 30 mm |
| Functional Width (WF) | 0.9 mm | Minimum Bore Diameter (DMIN) | 5 mm |
| Cutting Edge Material | Carbide | Grade | SH725 |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Tool Type | Solid Threading Tools |
| Application | | Internal Threading | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Unit | M |
| Coating | TiAlN |
Product Features
| Family Description | Solid boring bars for threading, Metric thread | FamilyName | JBIR |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Solid Thread Turning Tools
FamilyName
JBIR
BrandName
Tungaloy
