| Cutting Width (CW) | 5 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Overall Length (OAL) | 49 mm | Functional Width (WF) | 10.5 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 80 mm | Measurement Type | Metric |
| Application | | Face grooving | | Unit | M |
| Minimum Bore Diameter (DMIN) | 55 mm |
Product Features

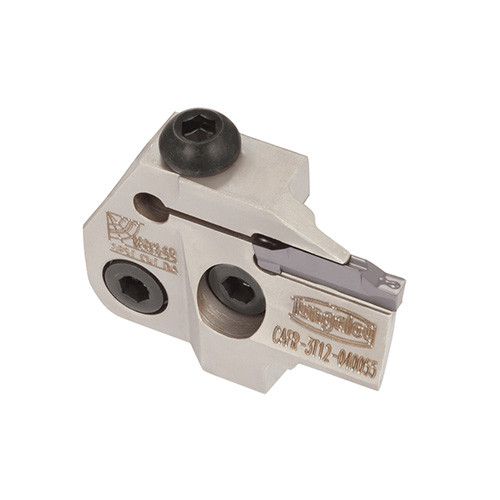

| Family Description | Blades for face grooving & turning | FamilyName | CAFR/L |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. See applicable inserts table. Use the right hand insert for the right hand holder with DTF insert. For "DAXMIN (Axial groove inside diameter minimum)", click on "More Info". Torque: Recommended torque (Nm) for clamping Not compatible with TungModularSystem | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.0980
Name
Face Groove/Turn Indexable Holders
FamilyName
CAFR/L
BrandName
Tungaloy
Related Documentation

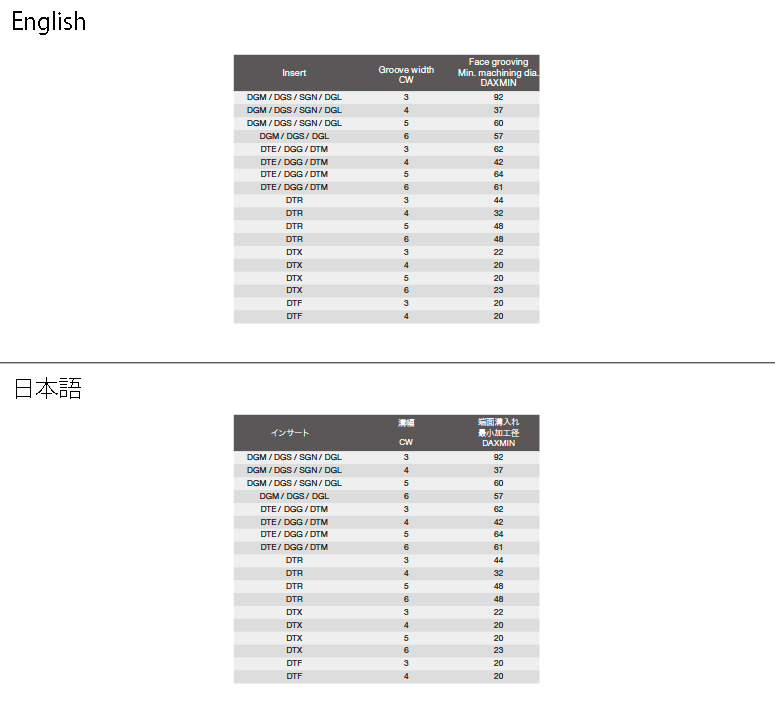

Insert geometry limits "DAXMIN (Axial groove inside diameter minimum)".
