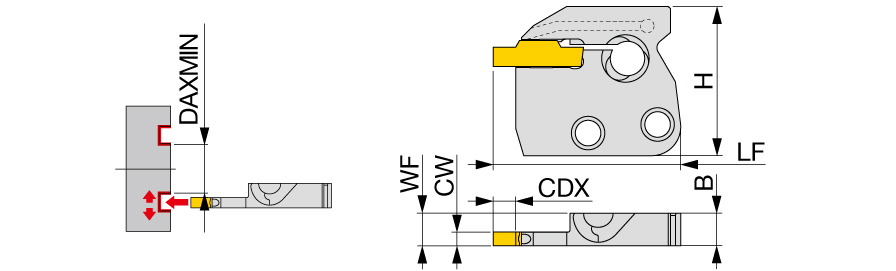

| Shank Width (B) | 7.2 mm | Tool Type | Turn-Groove Tools |
| Shank Height (H) | 33 mm | Body Material | Steel |
| Cutting Width (CW) | 3 mm | Functional Width (WF) | 7.7 mm |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Overall Length (OAL) | 41.5 mm | Unit | M |
| Application | | External grooving | Face grooving | |
Product Features
| Family Description | Modular blades for external / face grooving & turning with high pressure coolant channels | FamilyName | CAEFR/L-CHP |
| Remarks | Use the right hand insert for the right hand holder with DTF insert. For "DAXMIN (Axial groove inside diameter minimum)", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name

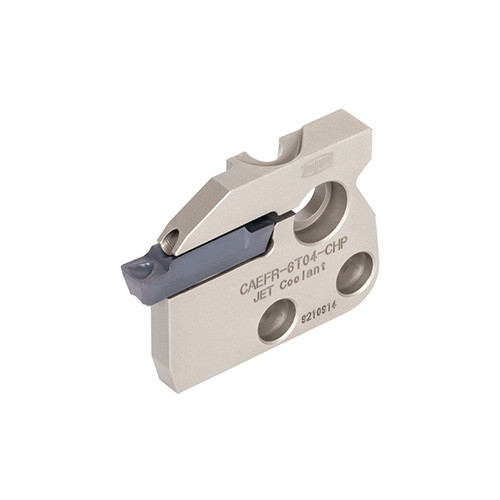

Face Groove/Turn Indexable Holders
FamilyName
CAEFR/L-CHP
BrandName
Tungaloy
Related Documentation
Insert geometry limits "DAXMIN (Axial groove inside diameter minimum)".
