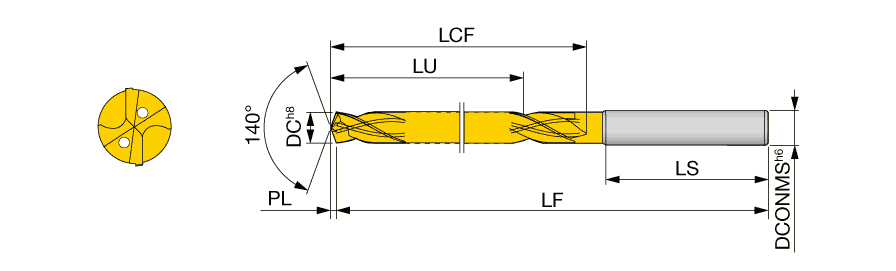

| Drill Bit Size / Cutting Diameter (DC) | 0.5938″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.5938″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5938″ | Tool Type | solid carbide Drills |
| Coating | TiAlN | Grade | AH180 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | General Drilling | | Usable Length (LU) | 1.889″ |
| Connection Diameter Machine Side (DCONMS) | 0.594″ | Length Chip Flute (LCF) | 3.15″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 5-3/4″ |
| Point Angle (SIG) | 140 Degrees | Body Material | Carbide |
| Point Length (PL) | 0.108″ | Unit | I |
| Shank Length (LS) | 2.6″ |
Product Features
| Family Description | GigaJetDrill series with coolant hole, L/D=3 | COO | JAPAN |
Shipping Info
Weight per item
0.6548
