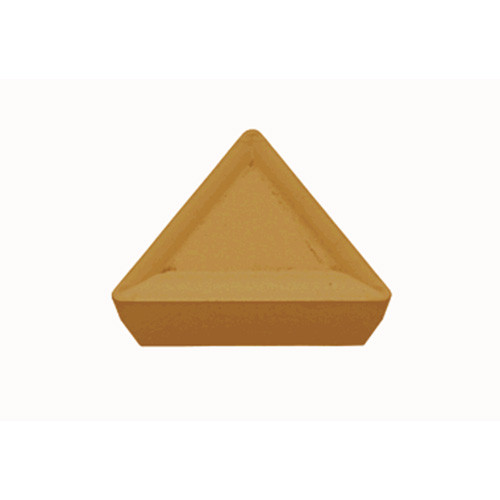

TPMR160308-23 NS9530
Positive 11deg relief ang., M class, triangular insert, for finishing to medium cutting
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Depth of Cut Maximum (APMX) | 2 mm |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Corner Radius (RE) | 0.8 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | 23 |
| Cutting Edge Material | Cermet | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | NS9530 | Cutting Edge Effective Length (LE) | 13.73 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
| Min D.O.C. | 0.5 mm |
Product Features
| Family Description | Positive 11deg relief ang., M class, triangular insert, for finishing to medium cutting | FamilyName | TPMR-23 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0360
Name
Turning Indexable Inserts
FamilyName
TPMR-23
BrandName
Tungaloy
