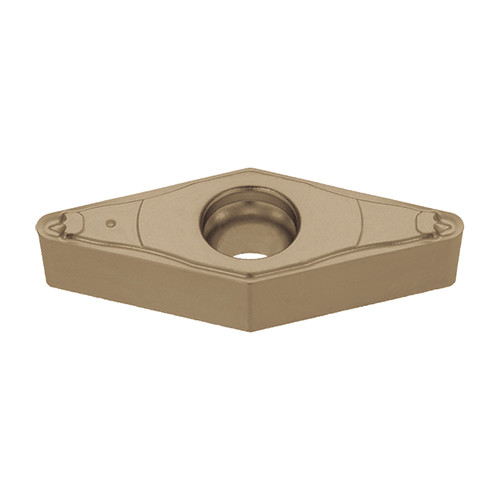

VBMT110308-PF GT9530
Positive 5deg relief ang., M class, 35deg rhombic insert, for finishing
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.2 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Cutting Edge Length (L) | 11.2 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | PF |
| Coating | TiCNO | Measurement Type | Metric |
| Grade | GT9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 8.28 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive 5deg relief ang., M class, 35deg rhombic insert, for finishing | FamilyName | VBMT-PF |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0240
Name
Turning Indexable Inserts
FamilyName
VBMT-PF
BrandName
Tungaloy
