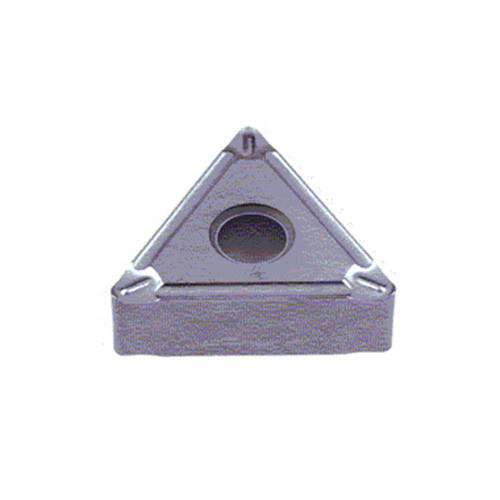

TNMG160408-11 NS9530
Negative relief ang., M class, triangular insert, for finishing
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.2 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | 11 |
| Cutting Edge Material | Cermet | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | NS9530 | Cutting Edge Effective Length (LE) | 13.73 mm |
| Fixing Hole Diameter (D1) | 3.81 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, triangular insert, for finishing | FamilyName | TNMG-11 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0450
Name
Turning Indexable Inserts
FamilyName
TNMG-11
BrandName
Tungaloy
