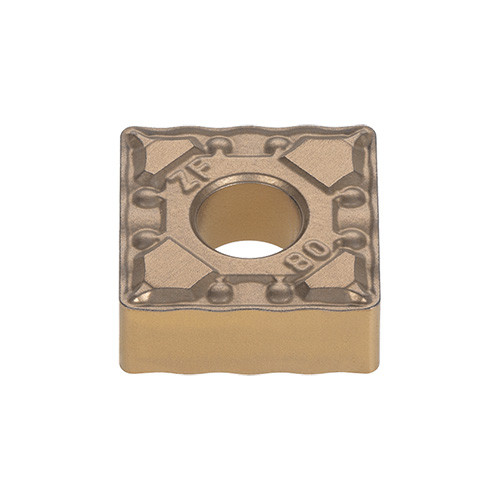

SNMG120402-ZF AH8015
Negative relief angle, M class, square insert for finishing mild steel
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.2 mm |
| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 12.7 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.1 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | ZF |
| Coating | AlTiN | Measurement Type | Metric |
| Grade | AH8015 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 5.16 mm | Unit | M |
Product Features
| Family Description | Negative relief angle, M class, square insert for finishing mild steel | FamilyName | SNMG-ZF |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
SNMG-ZF
BrandName
Tungaloy
