2QP-DCGT11T308-HS BR35F
Positive 7 deg relief angle, G class, 55 deg rhombic CBN insert with chipbreaker for finishing hardened steel.
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.1 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.35 mm |

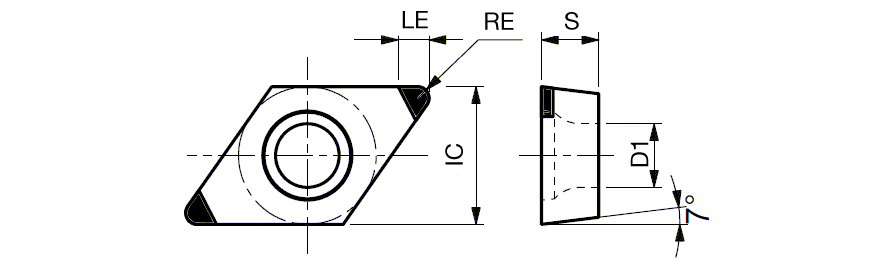

| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | Posi-HS |
| Coating | AlCrN | Measurement Type | Metric |
| Grade | BR35F | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Cutting Edge Effective Length (LE) | 2.1 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive 7 deg relief angle, G class, 55 deg rhombic CBN insert with chipbreaker for finishing hardened steel. | FamilyName | 2QP-DCGT-HS |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
2QP-DCGT-HS
BrandName
Tungaloy
