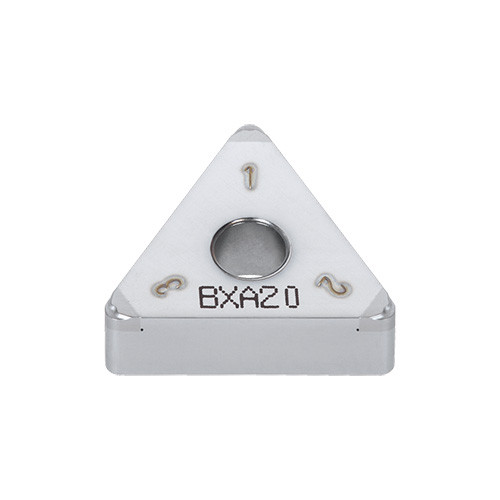

3QP-TNGM160408-HP BR35F
Negative relief ang., G class, triangular CBN insert with chipbreaker for finishing of hardened steel
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.03 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.22 mm |

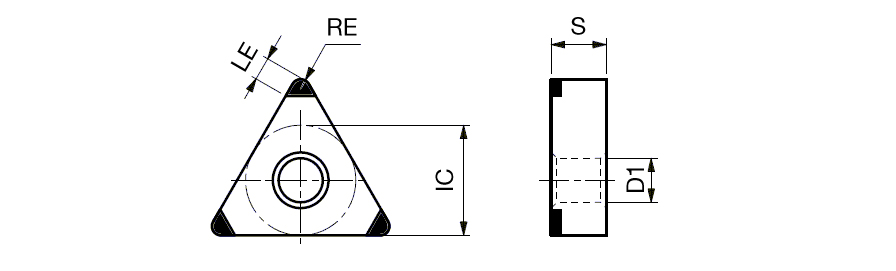

| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | Nega-HP |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | AlCrN | Body Material | Carbide |
| Grade | BR35F | Cutting Edge Effective Length (LE) | 1.9 mm |
| Fixing Hole Diameter (D1) | 3.81 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, triangular CBN insert with chipbreaker for finishing of hardened steel | FamilyName | 3QP-TNGM-HP |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
3QP-TNGM-HP
BrandName
Tungaloy
