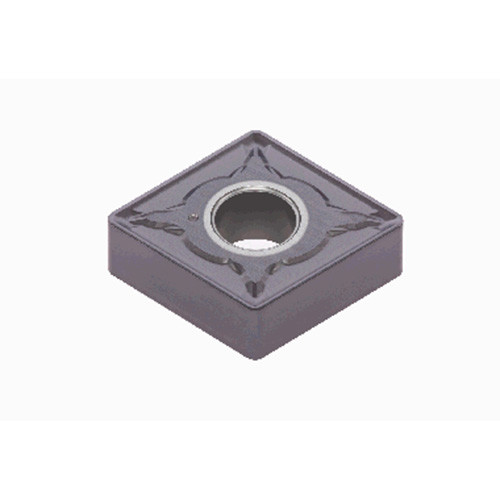

CNMG190616-SH AH6235
Negative relief ang., M class, 80deg rhombic insert, for medium to heavy cutting of stainless steel
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 2 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 6 mm |
| Corner Radius (RE) | 1.6 mm | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 19.3 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | SH |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH6235 | Cutting Edge Effective Length (LE) | 16.09 mm |
| Fixing Hole Diameter (D1) | 7.93 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium to heavy cutting of stainless steel | FamilyName | CNMG-SH |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
CNMG-SH
BrandName
Tungaloy
