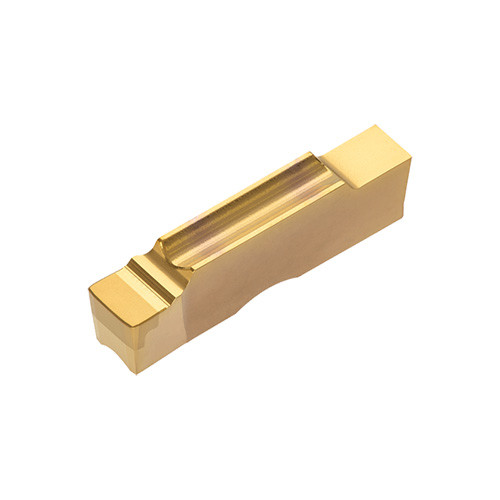

STH300-SR BXA10
Single-ended CBN insert for external and face turning of hardened steel
| Applicable Material | | Hard Materials | | Cutting Direction (HAND) | Neutral |
| Application | | Inserts | | Chip Breaker Type | STH |

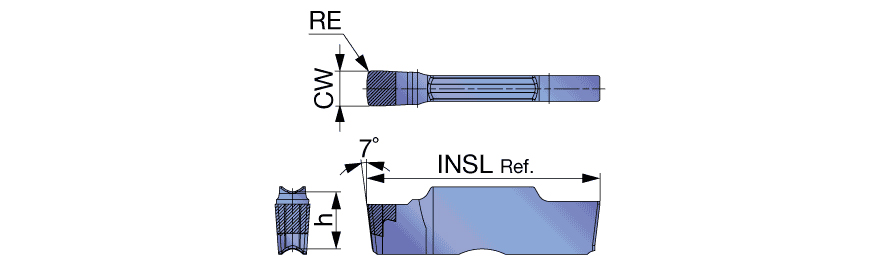

| Corner Radius (RE) | 0.3 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Coating | TiAlN+TiCN | Cutting Edge Effective Length (LE) | 2.5 mm |
| Grade | BXA10 | Unit | M |

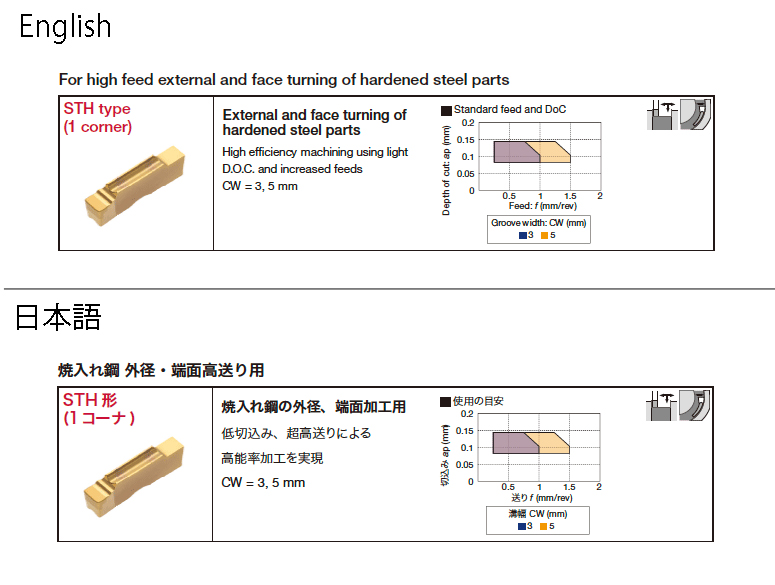

Product Features
| Family Description | Single-ended CBN insert for external and face turning of hardened steel | FamilyName | STH |
| Remarks | For "Standard cutting conditions", click on "More Info". Note: When used for grooving, the insert will not provide the groove bottom with square corners due to the cutting edge profile with an arc wiper. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
STH
BrandName
Tungaloy
