RCMM1204M0-61 AH905

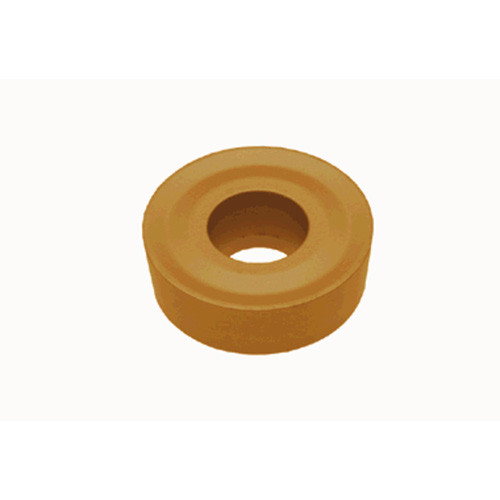

Positive 7deg relief ang., M class, round insert, for heavy cutting
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.5 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 6 mm | Min. Turning Feed (ft(min)) | 0.5 mm/rev |
| Cutting Edge Length (L) | 12 mm | Max. Turning Feed (ft(max)) | 1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 12 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi Size12-61 |
| Coating | AlTiN | Measurement Type | Metric |
| Grade | AH905 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.2 mm | Cutting Edge Effective Length (LE) | 6 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive 7deg relief ang., M class, round insert, for heavy cutting | FamilyName | RCMM-61 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0730
Name
Turning Indexable Inserts
FamilyName
RCMM-61
BrandName
Tungaloy
