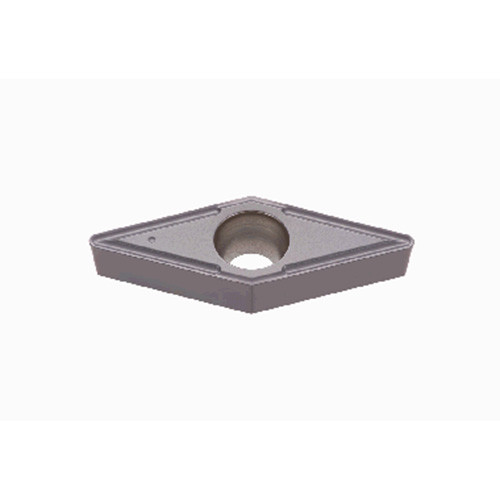

VCMT160412 AH905
Positive 7deg relief ang., M class, 35deg rhombic insert, for supper alloy cutting
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.1 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | PB |
| Coating | AlTiN | Measurement Type | Metric |
| Grade | AH905 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Unit | M |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7deg relief ang., M class, 35deg rhombic insert, for supper alloy cutting | FamilyName | VCMT |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1090
Name
Turning Indexable Inserts
FamilyName
VCMT
BrandName
Tungaloy
