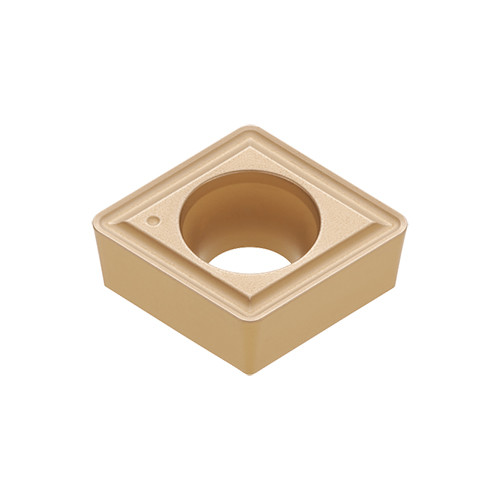

CCMT060204-CM T5115
Positive 7deg relief ang., M class, 80deg rhombic insert, for multi-purpose cutting of grey and ductile cast iron
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 6.5 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi-CM |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | T5115 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 5.64 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive 7deg relief ang., M class, 80deg rhombic insert, for multi-purpose cutting of grey and ductile cast iron | FamilyName | CCMT-CM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0230
Name
Turning Indexable Inserts
FamilyName
CCMT-CM
BrandName
Tungaloy
