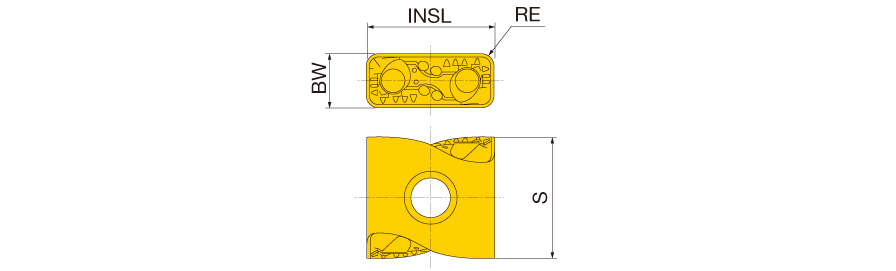

| Applicable Material | | Steel | Stainless Steel | | Depth of Cut Maximum (APMX) | 5 mm |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0.25 mm/rev |
| Corner Radius (RE) | 1.2 mm | Max. Turning Feed (ft(max)) | 0.8 mm/rev |
| Cutting Edge Length (L) | 16.2 mm | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 13.5 mm | Chip Breaker Type | 16TWR-R12 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | T9125 | Cutting Edge Effective Length (LE) | 14.8 mm |
| Tool Type | Turn Negative Inserts | Unit | M |
| Min D.O.C. | 0.8 mm |
Product Features

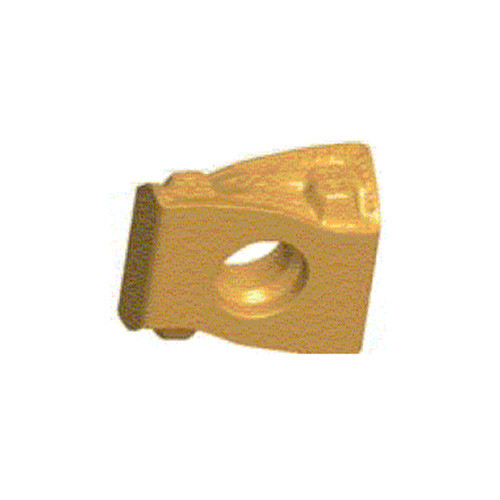

| Family Description | Insert with wiper edge | FamilyName | LNMXR/L-TWR |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1460
Name
Turning Indexable Inserts
FamilyName
LNMXR/L-TWR
BrandName
Tungaloy
