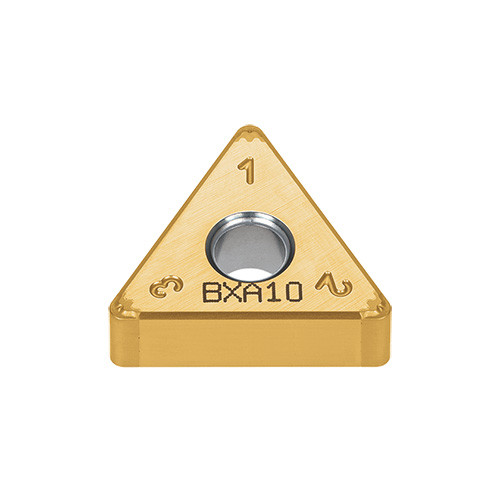

6QS-TNGG160404-HS BXA10
Negative relief angle, G class, triangular CBN insert with chipbreaker for finishing hardened steel, applied WavyJoint brazing technology.
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.1 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.35 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | Wavy-HS |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | TiAlN+TiCN | Body Material | Carbide |
| Grade | BXA10 | Cutting Edge Effective Length (LE) | 1.9 mm |
| Fixing Hole Diameter (D1) | 3.81 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief angle, G class, triangular CBN insert with chipbreaker for finishing hardened steel, applied WavyJoint brazing technology. | FamilyName | 6QS-TNGG-HS |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
6QS-TNGG-HS
BrandName
Tungaloy
