2QP-FNGG150412-HP BXA20

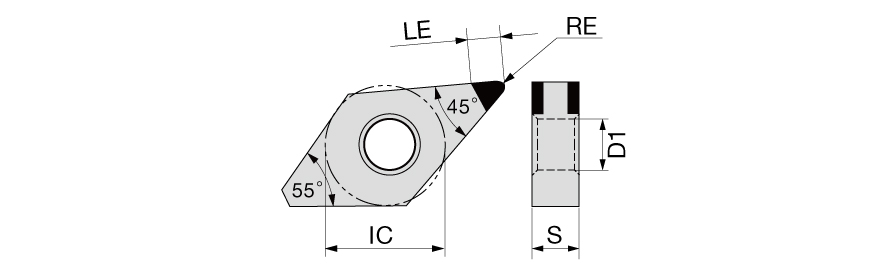

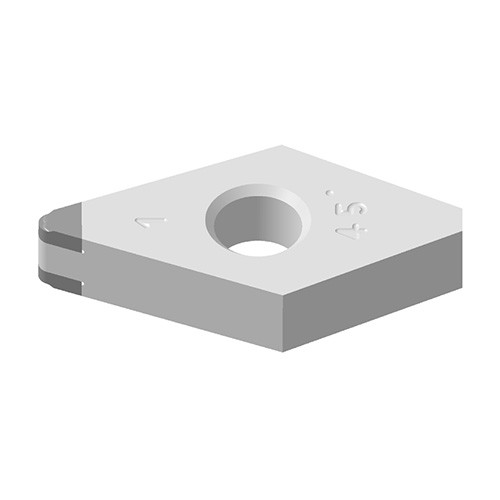

Negative relief ang., G class CBN insert with corner angle 45 degree for existing toolholder carrying DN**1504 insert.
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.03 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.22 mm |
| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | Nega-HP |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | BXA20 | Cutting Edge Effective Length (LE) | 3.3 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class CBN insert with corner angle 45 degree for existing toolholder carrying DN**1504 insert. | FamilyName | 2QP-FNGG-HP |
| COO | JAPAN | BrandName | Tungaloy |
