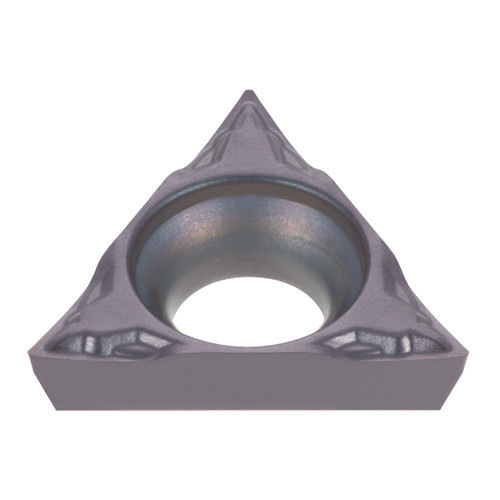

TPGT070104-JS SH730
Positive 11 deg relief angle, G class, triangular insert, 3 dimensional type chipbreaker for cutting on small lathes

Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.1 mm |
Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |
Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
Cutting Edge Length (L) | 7.6 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
Insert Thickness (S) | 1.59 mm | Clearance Angle Major (AN) | 11 Degrees |
Inscribed Circle Diameter (IC) | 4.37 mm | Cutting Direction (HAND) | Neutral |
Cutting Edge Material | Carbide | Chip Breaker Type | JS |
Coating | TiAlN | Measurement Type | Metric |
Grade | SH730 | Body Material | Carbide |
Fixing Hole Diameter (D1) | 2.58 mm | Cutting Edge Effective Length (LE) | 6.18 mm |
Tool Type | Turn Positive Inserts | Unit | M |

Product Features
Family Description | Positive 11 deg relief angle, G class, triangular insert, 3 dimensional type chipbreaker for cutting on small lathes | FamilyName | TPGT-JS |
Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
COO | JAPAN |
Shipping Info
Weight per item
0.0160
Name
Turning Indexable Inserts
FamilyName
TPGT-JS
BrandName
Tungaloy
