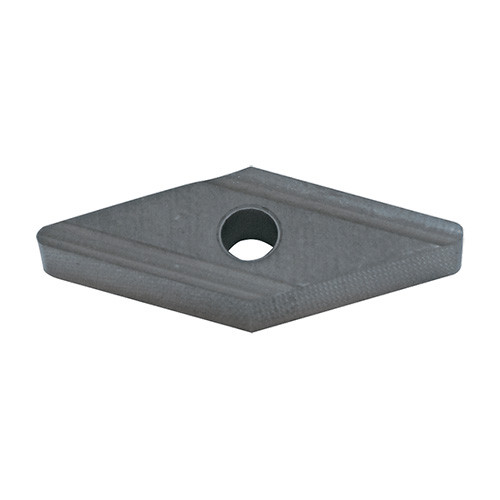

VNGG 331 R-P TH10
Negative relief ang., G class, 35deg rhombic insert, for finishing to medium cutting
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0197″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1575″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.654″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | P |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | TH10 | Cutting Edge Effective Length (LE) | 0.599″ |
| Fixing Hole Diameter (D1) | 0.15″ | Unit | I |
| Tool Type | Turn Inserts AL, HTA Geometric |
Product Features
| Family Description | Negative relief ang., G class, 35deg rhombic insert, for finishing to medium cutting | FamilyName | VNGGR/L-P |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2756
Name
Turning Indexable Inserts
FamilyName
VNGGR/L-P
BrandName
Tungaloy
