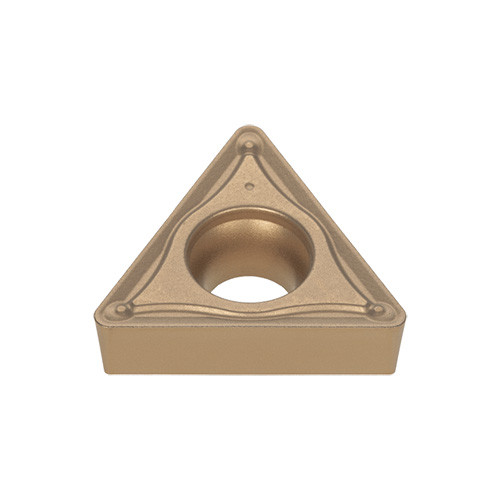

TCMT16T308-TSF AH8015
Positive 7deg relief ang., M class, triangular inserts for finishing to medium cutting
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.75 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi-TSF |
| Coating | AlTiN | Measurement Type | Metric |
| Grade | AH8015 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Cutting Edge Effective Length (LE) | 13.73 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive 7deg relief ang., M class, triangular inserts for finishing to medium cutting | FamilyName | TCMT-TSF |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
TCMT-TSF
BrandName
Tungaloy
