Q-DCMW11T304 BX330

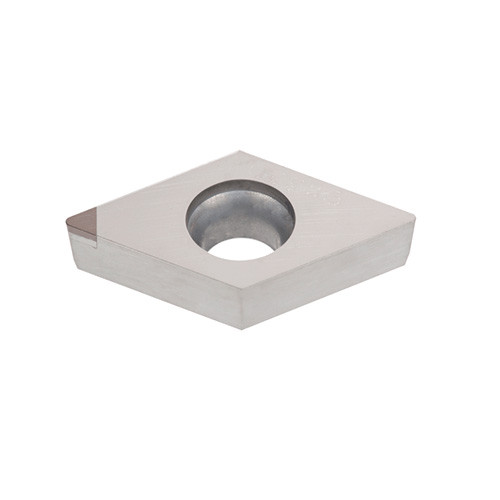

Positive 7deg relief ang., M class, 55deg rhombic CBN insert
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |

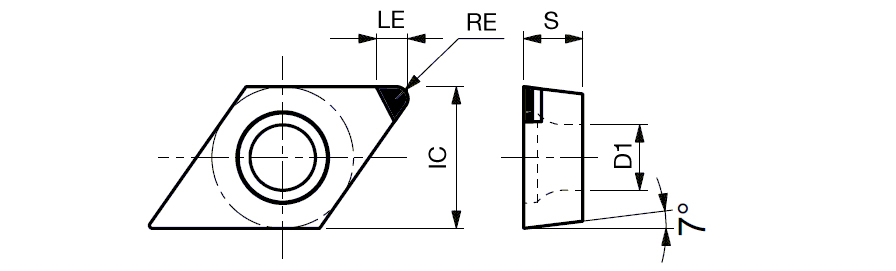

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | PCBN | Chip Breaker Type | FT |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | BX330 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Cutting Edge Effective Length (LE) | 2.1 mm |
| Tool Type | Turn Ultra hard Inserts | Unit | M |
Product Features
| Family Description | Positive 7deg relief ang., M class, 55deg rhombic CBN insert | FamilyName | Q-DCMW |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0200
Name
Turning Indexable Inserts
FamilyName
Q-DCMW
BrandName
Tungaloy
