| Applicable Material | | Hard Materials | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0.03 mm/rev |

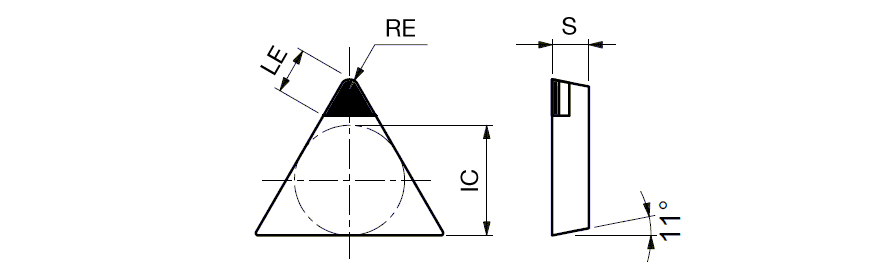

| Corner Radius (RE) | 0.8 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Cutting Edge Length (L) | 11 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | FT-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | BX360 | Cutting Edge Effective Length (LE) | 3.5 mm |
| Tool Type | Turn Ultra hard Inserts | Unit | M |
| Min D.O.C. | 0.05 mm |
Product Features

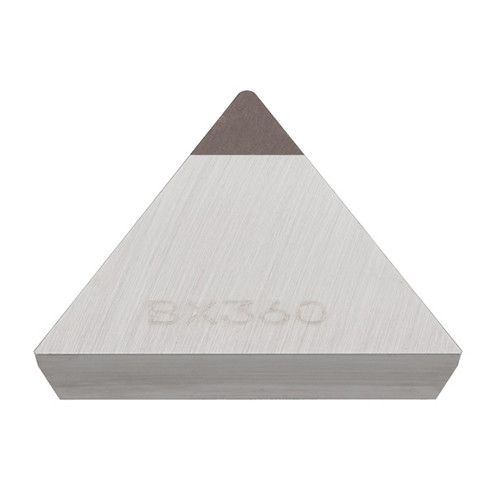

| Family Description | Positive 11deg relief ang., G class, triangular CBN insert | FamilyName | TPGN-QBN |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0120
Name
Turning Indexable Inserts
FamilyName
TPGN-QBN
BrandName
Tungaloy
