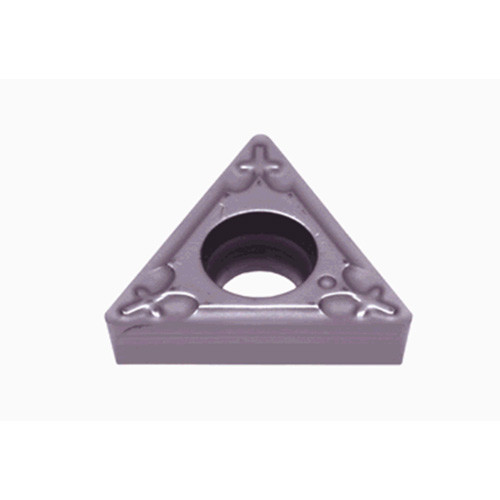

TCGT16T308-01 NS520
Positive 7 deg relief angle, G class, triangular insert, for precision finishing
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.02 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | Posi Type-01 |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | NS520 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Unit | M |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7 deg relief angle, G class, triangular insert, for precision finishing | FamilyName | TCGT-01 |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0360
Name
Turning Indexable Inserts
FamilyName
TCGT-01
BrandName
Tungaloy
