DNGA150404-DIA DX140
Negative relief ang., G class, 55deg rhombic PCD insert
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 1 mm |

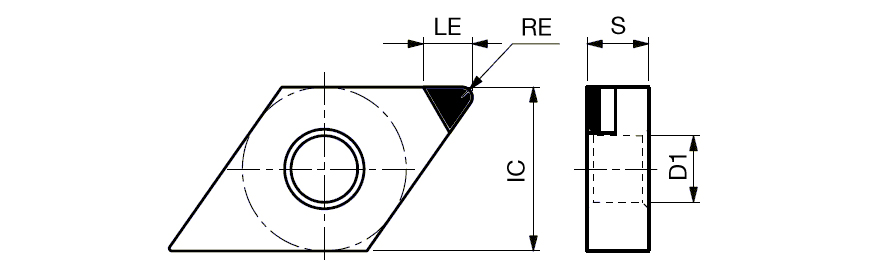

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | FT-DIA |
| Cutting Edge Material | PCD | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | DX140 | Cutting Edge Effective Length (LE) | 3.1 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, 55deg rhombic PCD insert | FamilyName | DNGA-DIA |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0230
Name
Turning Indexable Inserts
FamilyName
DNGA-DIA
BrandName
Tungaloy
