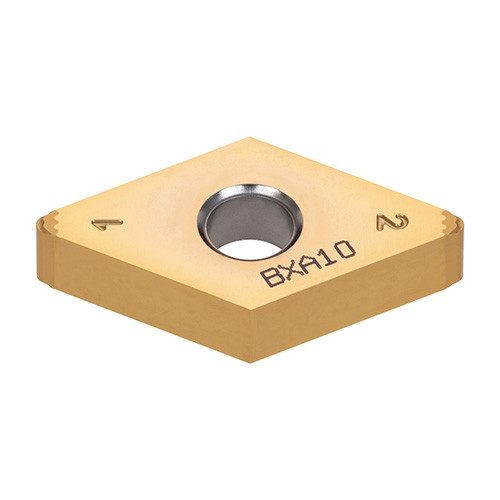

4QS-DNGG150408-HP BXA10
Negative relief ang., G class, 55 deg rhombic CBN insert with chipbreaker for finishing hardened steel, applied WavyJoint brazing technology

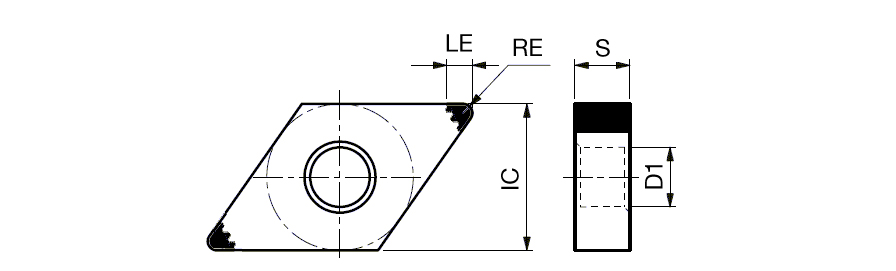

| Applicable Material | | Hard Materials | | Min D.O.C. | 0.03 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.22 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | Wavy-HP |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | TiAlN+TiCN | Body Material | Carbide |
| Grade | BXA10 | Cutting Edge Effective Length (LE) | 1.6 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, 55 deg rhombic CBN insert with chipbreaker for finishing hardened steel, applied WavyJoint brazing technology | FamilyName | 4QS-DNGG-HP |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
4QS-DNGG-HP
BrandName
Tungaloy
