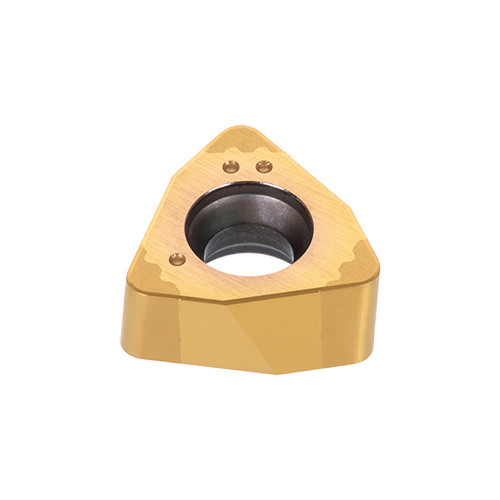

6QS-WXGQ040308SPR BXA10
Double sided trigon CBN insert, applied WavyJoint brazing technology
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 1.7 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 3.18 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | MFT Wavy-FT |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | TiAlN+TiCN | Body Material | Carbide |
| Grade | BXA10 | Cutting Edge Effective Length (LE) | 1.7 mm |
| Fixing Hole Diameter (D1) | 2.7 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double sided trigon CBN insert, applied WavyJoint brazing technology | FamilyName | 6QS-WXGQ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
6QS-WXGQ
BrandName
Tungaloy
