2QP-VCGW160408 BXA10

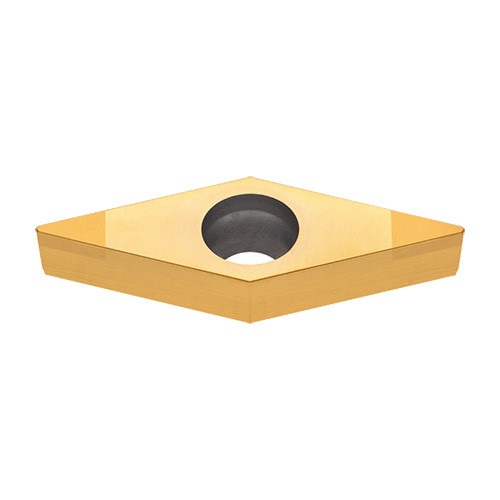

Positive 7deg relief ang., M/G class, 35deg rhombic CBN insert
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | FT-CBN |
| Coating | TiAlN+TiCN | Measurement Type | Metric |
| Grade | BXA10 | Body Material | Carbide |

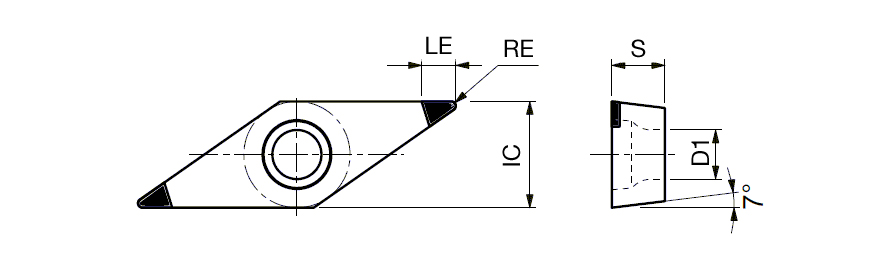

| Fixing Hole Diameter (D1) | 4.4 mm | Cutting Edge Effective Length (LE) | 2.2 mm |
| Tool Type | Turn Ultra hard Inserts | Unit | M |
Product Features
| Family Description | Positive 7deg relief ang., M/G class, 35deg rhombic CBN insert | FamilyName | 2QP-VCM/GW |
| Remarks | The last letter of designation means as below. F: Sharp edge E: Edge preparation for preventing vibration and for suppressing work deformation L: Edge preparation for reducing flank wear LF: Edge preparation for reducing burrs LC: Edge preparation for reducing crater wear LT, H: Edge preparation for reducing fracture W, WL, WJ, WG: Wiper | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0170
Name
Turning Indexable Inserts
FamilyName
2QP-VCM/GW
BrandName
Tungaloy
