| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | L-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | BXA20 | Cutting Edge Effective Length (LE) | 3.1 mm |
| Fixing Hole Diameter (D1) | 3.81 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features

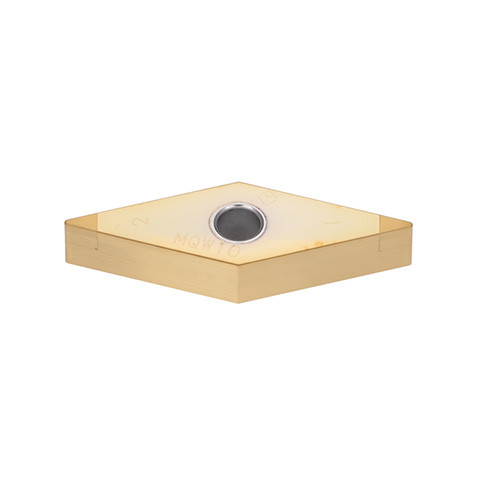

| Family Description | Negative relief angle, G class, 35 deg rhombic CBN insert | FamilyName | 2QP-VNGA |
| Remarks | The last letter of designation means Edge preparation (EP) as below. Without letter, SR: Standard EP F: Sharp edge E: EP for preventing vibration and for suppressing work deformation L: EP for reducing flank wear LF: EP for reducing burrs LC: EP for reducing crater wear LT, H, HC: EP for reducing fracture W, WL, WJ, WG: Wiper | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
2QP-VNGA
BrandName
Tungaloy
