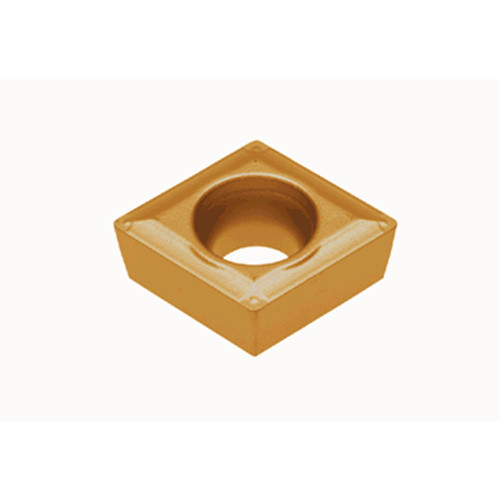

CCMT060204-23 T9225
Positive 7deg relief ang., M class, 80deg rhombic insert, for finishing to medium cutting
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.5 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Cutting Edge Length (L) | 6.5 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | 23 |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Metric |
| Grade | T9225 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 5.64 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive 7deg relief ang., M class, 80deg rhombic insert, for finishing to medium cutting | FamilyName | CCMT-23 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
CCMT-23
BrandName
Tungaloy
