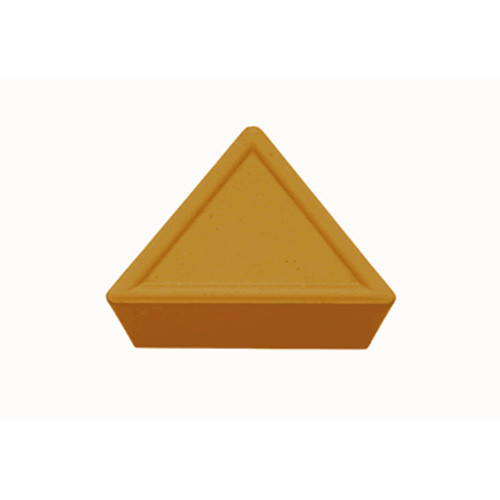

TPMR110304-24 T9225
Positive 11deg relief ang., M class, triangular insert, for medium cutting

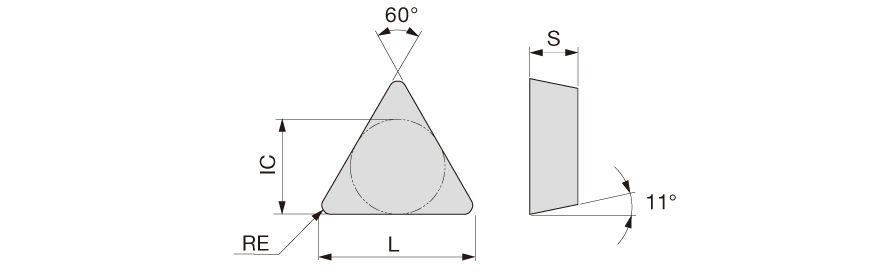

| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Depth of Cut Maximum (APMX) | 3 mm |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Corner Radius (RE) | 0.4 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 11 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | 24 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Ti-compound+Al2O3+TiN | Body Material | Carbide |
| Grade | T9225 | Cutting Edge Effective Length (LE) | 9.61 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
| Min D.O.C. | 0.5 mm |
Product Features
| Family Description | Positive 11deg relief ang., M class, triangular insert, for medium cutting | FamilyName | TPMR-24 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
TPMR-24
BrandName
Tungaloy
