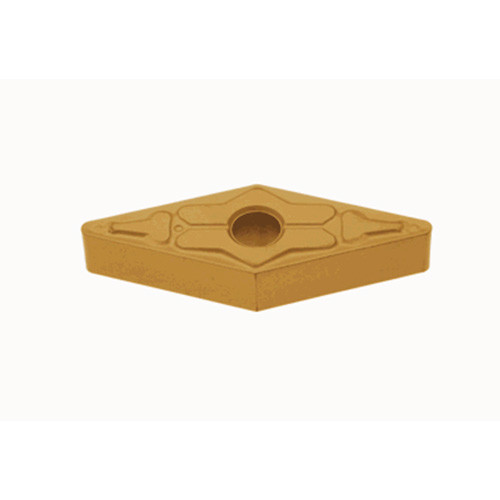

VNMG160404-TM T9225
Negative relief ang., M class, 35deg rhombic insert, for medium cutting
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 1 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | Nega-TM |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Ti-compound+Al2O3+TiN | Body Material | Carbide |
| Grade | T9225 | Cutting Edge Effective Length (LE) | 15.21 mm |
| Fixing Hole Diameter (D1) | 3.81 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, 35deg rhombic insert, for medium cutting | FamilyName | VNMG-TM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
VNMG-TM
BrandName
Tungaloy
