POMG130612-MNW T9215

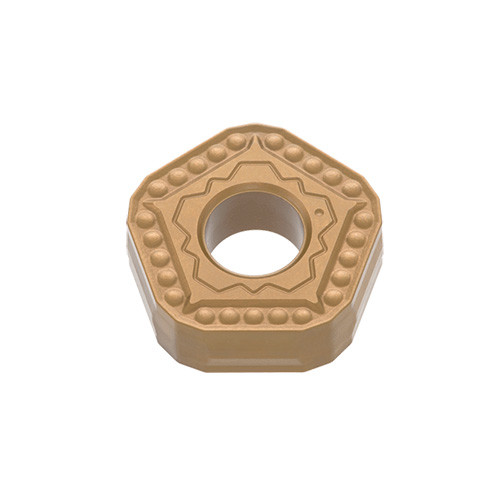

Negative relief ang., M class, pentagonal insert for high feed and high depth of cut

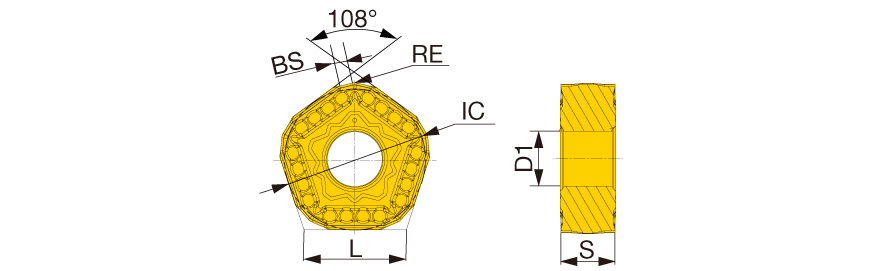

| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Fixing Hole Diameter (D1) | 7.93 mm |
| Application | | Inserts | | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 1.2 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 13.84 mm | Chip Breaker Type | 13-MNW |
| Insert Thickness (S) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Ti-compound+Al2O3+TiN | Cutting Edge Effective Length (LE) | 13.84 mm |
| Grade | T9215 | Unit | M |
Product Features
| Family Description | Negative relief ang., M class, pentagonal insert for high feed and high depth of cut | FamilyName | POMG-MNW |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
POMG-MNW
BrandName
Tungaloy
