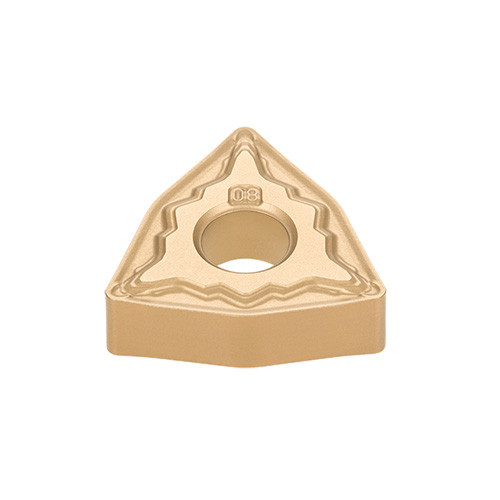

WNMG080412-AM T9215
Negative relief ang., M class, 80deg trigon insert, for high-feed machining in medium of steel
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 1.5 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 4.5 mm |
| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 8.7 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | AM |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Ti-compound+Al2O3+TiN | Body Material | Carbide |
| Grade | T9215 | Cutting Edge Effective Length (LE) | 7.52 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Unit | M |
Product Features
| Family Description | Negative relief ang., M class, 80deg trigon insert, for high-feed machining in medium of steel | FamilyName | WNMG-AM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1020
Name
Turning Indexable Inserts
FamilyName
WNMG-AM
BrandName
Tungaloy
