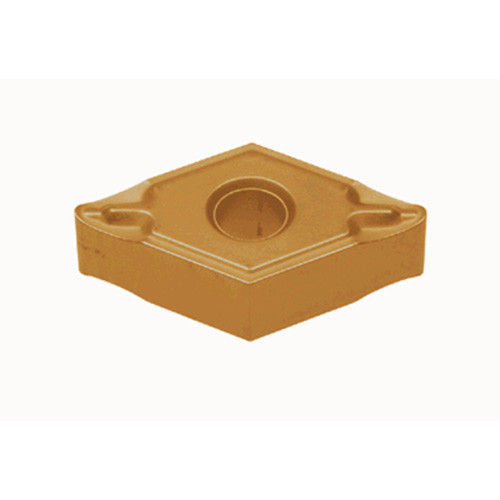

DNMG110408-CB T9215
Negative relief ang., M class, 55deg rhombic insert, doubledsided chipbreaker for boring
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.2 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Cutting Edge Length (L) | 11.6 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | CB |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Metric |
| Grade | T9215 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 3.81 mm | Unit | M |
Product Features
| Family Description | Negative relief ang., M class, 55deg rhombic insert, doubledsided chipbreaker for boring | FamilyName | DNMG-CB |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0075
Name
Turning Indexable Inserts
FamilyName
DNMG-CB
BrandName
Tungaloy
