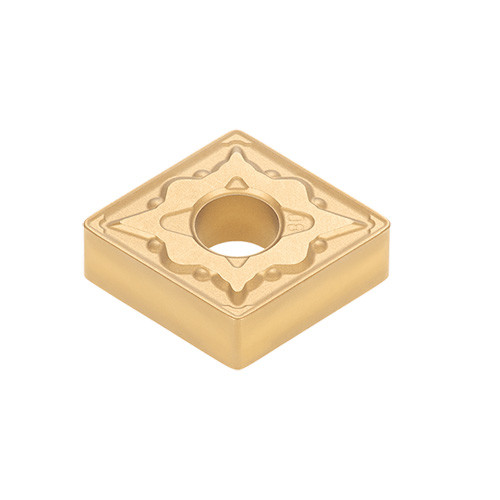

CNMG120408-SW T9215
Negative relief ang., M class, 80deg rhombic insert with wiper edge, for finishing to medium cutting. Wiper edge on 80 deg and 100 deg corner.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.5 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | Nega-SW |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Ti-compound+Al2O3+TiN | Body Material | Carbide |
| Grade | T9215 | Cutting Edge Effective Length (LE) | 11.27 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert with wiper edge, for finishing to medium cutting. Wiper edge on 80 deg and 100 deg corner. | FamilyName | CNMG-SW |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1040
Name
Turning Indexable Inserts
FamilyName
CNMG-SW
BrandName
Tungaloy
