| Applicable Material | | Cast Iron | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 12.5 mm | Max. Turning Feed (ft(max)) | 0.45 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 7.15 mm | Chip Breaker Type | FT |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
| Grade | T515 | Cutting Edge Effective Length (LE) | 3 mm |
| Fixing Hole Diameter (D1) | 3.81 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features

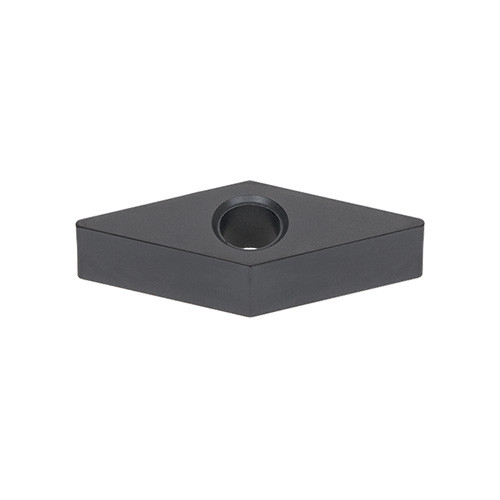

| Family Description | Negative relief ang., M class, 35deg rhombic insert, without chipbreaker for finishing to medium cutting | FamilyName | VNMA*E |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0660
Name
Turning Indexable Inserts
FamilyName
VNMA*E
BrandName
Tungaloy
