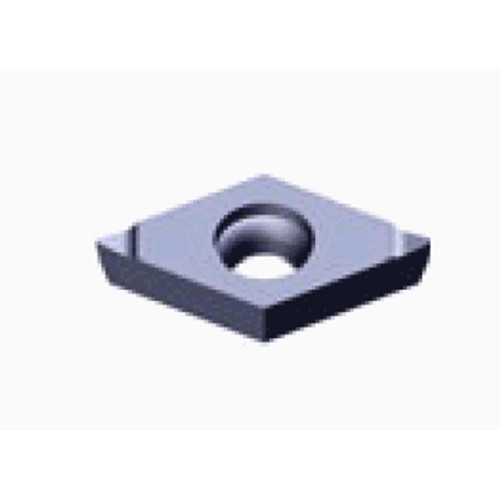

DCET11T3018MFN-JSP SH725
Positive 7deg relief ang., E class, 55deg rhombic insert, neutral type chipbreaker for cutting on small lathes
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Min D.O.C. | 0.08 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.18 mm | Min. Turning Feed (ft(min)) | 0.01 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.09 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | JSP |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | SH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Cutting Edge Effective Length (LE) | 11.19 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features
| Family Description | Positive 7deg relief ang., E class, 55deg rhombic insert, neutral type chipbreaker for cutting on small lathes | FamilyName | DCET-JSP |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0720
Name
Turning Indexable Inserts
FamilyName
DCET-JSP
BrandName
Tungaloy
